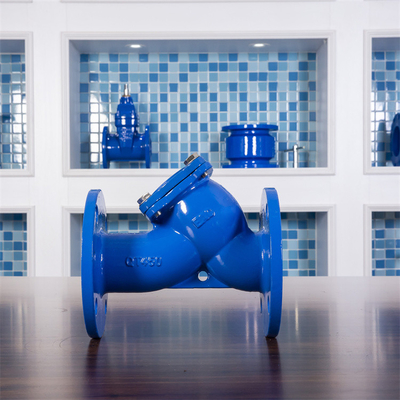

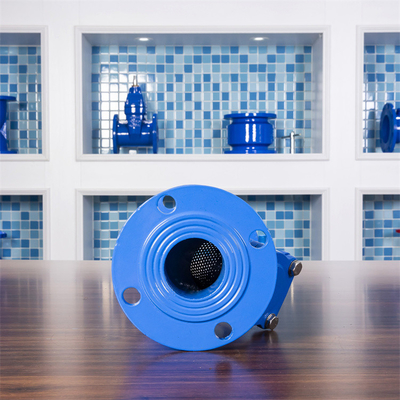

Ductile Iron 4inch Y Strainer Valve For Water Filter Spare Parts

product description

The Y-type filter has effectively treated a large amount of domestic and industrial sewage in the application of various industries, so that the precious water resources have been effectively reused, and a large amount of water resources can be saved. The advantages of Y-type filter in operation include full automation, maintenance-free, large filter area, high filter efficiency, long service life, stainless steel material, optional filter precision, and complete specifications. Compared with other filtration equipment, it is one of the most effective equipment in the reclaimed water reuse project. Moreover, the water quality after the Y-type filter treatment not only meets the national discharge standards, but also achieves the purpose of repeated and recycling.How does Y-Strainer work?

In the Y-type strainer, the filtration leg is attached to the main pipeline at an angle, the shape of which is like ‘Y’ and called Y Strainer. A Y-type strainer is typically used in high-pressure pipelines, steam, liquid, or gas, but it can be used in vacuum or suction conditions.

Y-type strainers have a lower dirt holding capacity owing to the need for more frequent cleaning. This is usually not an issue with steam systems, except where high levels of rust are present, or shortly after commissioning where large quantities of debris can be added.

In applications where large quantities of debris are present, the blow valve will normally be installed into the strainer cap, which allows the strainer to use the steam pressure to be cleaned and without shutting down the process.





y-type filter(reduced diameter)	flange thickness	flange outer circle	structure lenght	waterline height	waterline diameter	Height	screen diameter	filter lenght	filter aperture	center distance of filter	weight	lenght
DN50	12.5	156	201	2	102	185	48	85	2	4	4.5	205
DN65	12	175	217	2	123	210	60	95	2	4	6.5	220
DN80	14	190	247	2	134	242	68	116	2	4	8	250
DN100	14.5	209	293.5	2	157	265	82	137	2	4	10.5	298
DN125	20	240									14	315
DN150	24	280	335				113	165	2	5	19	350
DN200	24	335	405								34	410
DN250	24	405	460								58	525
DN300	24	460	520								80	605
DN350	25	520	580								98	627
DN400	27	580									126	630





company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!



































































































































































































































































































































Q: Are you a manufacturer or trading company?

A: We are a valve manufacturer and factory, and not a trading company.

Q: Do you have an agent or representative abroad?

A: We don't have an agent abroad,

please contact us to purchase valves from Fengbao Valve Co., Ltd directly.

Q: What's your product range?

A: We can produce a Gate valve, Check valve, Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity, generally 30-40 days.

 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
