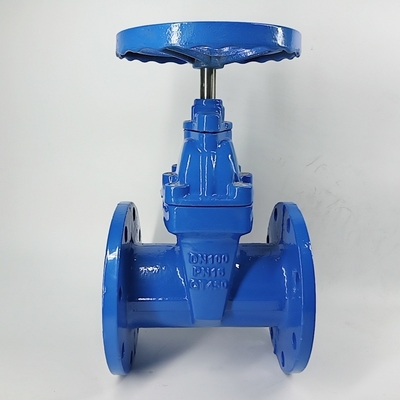

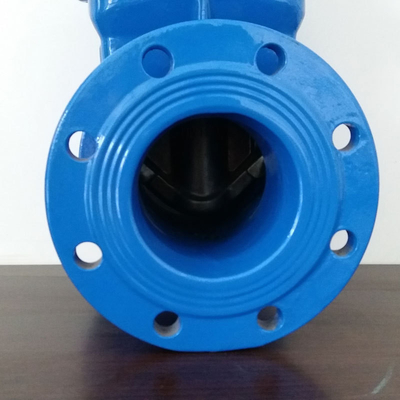

DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard

DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard
DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard

Large Image :  DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard

Product Details:
Place of Origin: China Hebei
Brand Name: FB valve
Certification: ISO9001
Model Number: DN300
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25
Payment Terms: T/T
Supply Ability: 100 tons/ month

DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard

Description
Media: Water, Steam, Oil Power: -25°-180°
Work Pressure: PN16 Material: QT450
Surface: Powder Coating/Acid Pickling/Paint Seal Surface: Wedge Gate Valve
Standard: DIN Specification: DN50-DN300
Highlight:

rubber wedge gate valve Gear Operated

,

QT450 Rubber Wedge Gate Valve

,

dn300 gate valve Gear Operated

DN 300 Ductile Iron QT450 Rubber Wedge Resilient Seat Gear Operated Water P16 DIN Standard Gate Valve







product description:



 advantages:

The main advantages of gate valve include:

1. The fluid resistance of the valve is small. Because the valve body of the gate valve is a straight-through type and the flow of the medium doesn't change direction, the fluid resistance of it is small compared with other kinds of valves.

2. The sealing performance is better than that of other shut-off valves. The opening and closing of it are more convenient.

3. The range of applications is wider. In addition to steam, oil and other media, it can be used in medium containing granular solid and with large viscosity. It can also be used as an air-venting valve and a low vacuum system valve.

4. The gate valve has dual flow directions. It's not subject to the flow directions of the medium. Therefore, it is suitable for use in a pipeline where the medium may change the flow direction. It is also easy to install.



Part name Meterial
Body Gray iron, ductile iron, cast steel
Gate Ductile iron+EPDM or NBR
Allen bolits Carbonization process
Seals NBR,EPDM
Bonnect Gray iron,ductile iron,cast steel
Stem Stainless steel
O-ring seals NBR
Thrust bearings Tin bronze
Bolt Carbon steel,ally steel
Gland Ductile iron,cast steel
Dust Cover NBR
Hand wheel Malleable iron

DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 0DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 1DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 2



Company Profile:

Founded in 2012, Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 3

DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 4

DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 5DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 6DN 300 Ductile Iron QT450 Rubber Wedge Gate Valve Gear Operated P16 DIN Standard 7

1. who are we?
We are based in Hehei, China, start from 2014,sell to Southeast Asia(40.00%),Mid East(20.00%),South Asia(10.00%),Africa(10.00%),Northern Europe(7.00%),Eastern Asia(5.00%),Western Europe(2.00%),Southern Europe(1.00%),North America(1.00%),Central America(1.00%),South America(1.00%),Oceania(1.00%),Eastern Europe(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


3. why should you buy from us not from other suppliers?
Offer quality valves with competitive price. 2 years warranty period. OEM and ODM orders are accepted.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDP,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Escrow;
