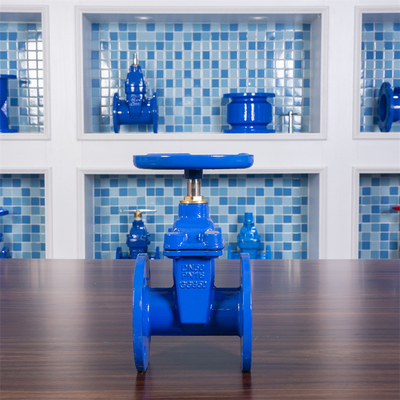

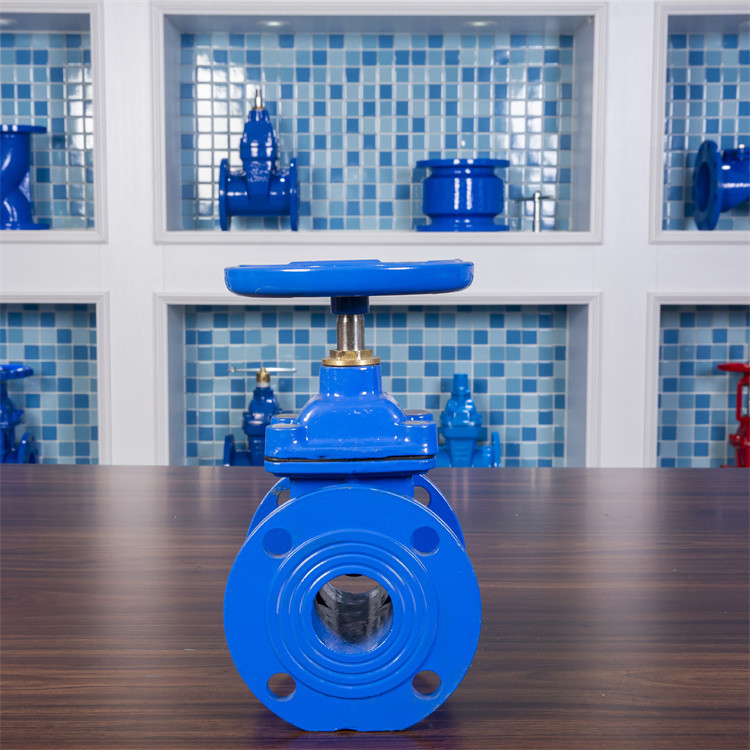

Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized

Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized
Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized

Large Image :  Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized

Product Details:
Place of Origin: China
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25
Payment Terms: T/T
Supply Ability: 100 tons/ month

Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized

Description
Media: Water, Steam, Oil Power: -25°-180°
Work Pressure: PN10/PN16 Warranty: 1 Year
Surface: Powder Coating/Acid Pickling Product Name: Gate Valve
Color: Blue
Highlight:

Resilient Seated Gate Valve PN10

,

Customized Resilient Seated Gate Valve

,

metal seated gate valve PN10

Cast Iron Customized Stem Ductile Iron Resilient Wedge Disc Seat Gate Valve





product description:



The main function of the gate valve is to be able to close and open. When the gate valve is closed, it acts as a seal through the medium pressure. Gate valves also have different materials, which can be used for switching and closing of water flow or steam, including various oils or oxidizing media and other liquids. The applicable pressure range and temperature are relatively wide, and will not be restricted by the flow direction. It can also bring very good sealing performance.

Gate valves are primarily used in larger pipe diameters  as they are simpler in construction than other types of large size valves. At high pressure, friction can become a problem. Operating the valve becomes more difficult as the gate is pushed against its guide by the pressure of the medium. Large gate valves are sometimes equipped with a bypass controlled by a smaller valve to allow the pressure to be reduced before operating the gate valve itself. Gate valves without additional seals on the gate or seat are used in applications where slight leakage from the valve is not an issue, such as heating circuits or sewer lines.





Part name Meterial
Body Gray iron, ductile iron, cast steel
Gate Ductile iron+EPDM or NBR
Allen bolits Carbonization process
Seals NBR,EPDM
Bonnect Gray iron,ductile iron,cast steel
Stem Stainless steel
O-ring seals NBR
Thrust bearings Tin bronze
Bolt Carbon steel,ally steel
Gland Ductile iron,cast steel
Dust Cover NBR
Hand wheel Malleable iron
Product Name
Material
Valve Body
Ductile iron, plastic spraying
Wedge Disc
Ductile iron, overall EPDM coating
Stem
2Gr13, 45#chrome-plated steel, SS304, SS316, SS410 Stem
Handwheel
Cast iron or iron sheet
Wedge Nut
Steel or Brass





Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized 0Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized 1Cast Iron Stem Ductile Iron Resilient Seated Gate Valve PN10 PN16 Customized 2
