DN50 Resilient Seat Gate Valve Ductile Iron Flanged PN16 Double Epoxy Coating

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

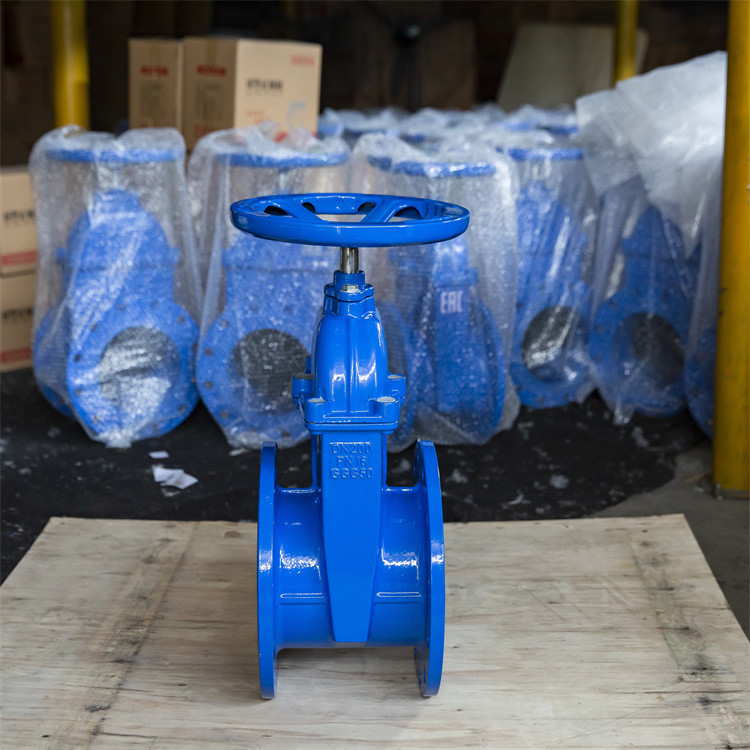

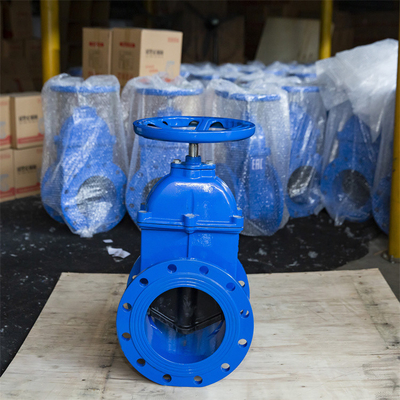

DN50 Resilient Seat Gate Valve Ductile Iron Flanged PN16 Double Epoxy Coating

DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating
DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating

Large Image :  DN50 Resilient Seat Gate Valve Ductile Iron Flanged PN16 Double Epoxy Coating

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

DN50 Resilient Seat Gate Valve Ductile Iron Flanged PN16 Double Epoxy Coating

Description
Type:: Resilient Seat Gate Valve Pressure:: PN16
Temperature:: -20 ~120C Material:: Ductile Iron
Media:: Water Standard:: DIN
Seal Material:: Rubber Sealing Valve Type:: High Performance
Highlight:

DN50 Resilient Seat Gate Valve

,

flanged Resilient Seat Gate Valve

,

PN16 ductile iron gate valve



Resilient Seat Gate Valve DN50 ductile cast iron PN16 resilient seat hand wheel double epoxy coating flanged gate valve



product description



A gate valve, also known as a sluice valve, is a valve that opens by lifting a barrier (gate) out of the path of the fluid. Gate valves require very little space along the pipe axis and hardly restrict the flow of fluid when the gate is fully opened. The gate faces can be parallel but are most commonly wedge-shaped (in order to be able to apply pressure on the sealing surface).

Gate valves are used to shut off the flow of liquids rather than for flow regulation. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low flow resistance.The size of the open flow path generally varies in a nonlinear manner as the gate is moved. This means that the flow rate does not change evenly with stem travel. Depending on the construction, a partially open gate can vibrate from the fluid flow.

Gate valves are mostly used with larger pipe diameters (from 2" to the largest pipelines) since they are less complex to construct than other types of valves in large sizes.

At high pressures, friction can become a problem. As the gate is pushed against its guiding rail by the pressure of the medium, it becomes harder to operate the valve. Large gate valves are sometimes fitted with a bypass controlled by a smaller valve to be able to reduce the pressure before operating the gate valve itself.

Gate valves without an extra sealing ring on the gate or the seat are used in applications where minor leaking of the valve is not an issue, such as heating circuits or sewer pipes.









Gate valve(light craft) Flange thickness Flange outer circle Waterline height waterline diameter height length weight
DN50 12 160 1.5 100   178 5.9
DN65 12 174 1.5 118 320 190 7.5
DN80 12.5 191 1.5 132 360 203 9
DN100 11.7 209 1.5 154 395 229 11.3
DN150 15 275 2 213 525 267 21



DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 0DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 1



DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 2DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 3

company  profile


Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 4

DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 5





DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 6



DN50 Resilient Seat Gate Valve  Ductile Iron Flanged PN16 Double Epoxy Coating 7

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
