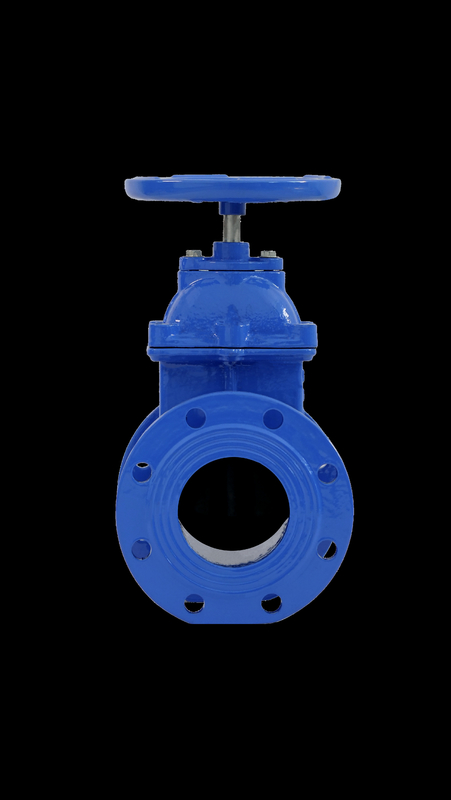

PN16 Din F4 Resilient Seat Gate Valve Ggg40 High Temperature Resistance

PN16 Din F4 Resilient Seat Gate Valve Ggg40 High Temperature Resistance
PN16 Din F4 Resilient Seat Gate Valve Ggg40 High Temperature Resistance

Large Image :  PN16 Din F4 Resilient Seat Gate Valve Ggg40 High Temperature Resistance

Product Details:
Place of Origin: China
Brand Name: Resilient Seat Gate Valve
Certification: ISO9001
Model Number: GGG40
Payment & Shipping Terms:
Minimum Order Quantity: 10 Units
Price: Negotiation
Packaging Details: Customized packaging
Delivery Time: 5~25 Work Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 Pieces/Month

PN16 Din F4 Resilient Seat Gate Valve Ggg40 High Temperature Resistance

Description
Name: Resilient Seat Gate Valve Pressure: PN16
Media: Water Operating Temperature: 180℃
Connection: Flange Ends Use: Shipbuilding, Marine, Industry, Agriculture, Heating Systems,
Highlight:

PN16 Resilient Seat Gate Valve

,

din f4 Resilient Seat Gate Valve

,

high temperature resistance ggg40 gate valve

F4 elastic seat gate valve GGG40 Application: water delivery, pressure: PN16, high temperature resistance ≤ 180°



product description



1. Main features and uses of German standard gate valve
1. The German standard gate valve has compact structure, reasonable design, good valve rigidity, smooth passage and small flow resistance coefficient.
2. The sealing surface is made of stainless steel and hard alloy, which has a long service life.
3. Adopt flexible graphite packing, reliable sealing, light and flexible operation.
4. The driving methods are: electric, pneumatic, gear rotation, structure: elastic wedge single gate, rigid wedge single gate double gate
5. Water-sealed gate valves are widely used in chemical, thermal, power plants and other oil and steam pipelines as opening and closing devices for connecting or cutting off the medium in the pipeline.

Connection
Flanged ends
Size
DN40mm~DN600mm
Body Material
Ductile iron ggg40
Standard
DIN
Pressure
PN10, PN16,PN25
Structure type
wedge
Seal Materials
EPDM/NBR
Coating
Internal and external with fusion bonded epoxy coating min250μm
Packaging
Plywood case


PN16 Din F4 Resilient Seat Gate Valve Ggg40 High Temperature Resistance 0
