Product Details:
|
Type:: | Check Valve, Swing Check Valve | Connection: | Flange Ends |
---|---|---|---|
Temperature: | 0-180℃ | Pressure: | PN10/16 |
Material: | Ductile Iron QT450-10 | Media: | Water, Water Gas Oil Etc |
Structure: | Swing | Customize: | Acceptable |
Specification: | DN150 | Color: | Random |

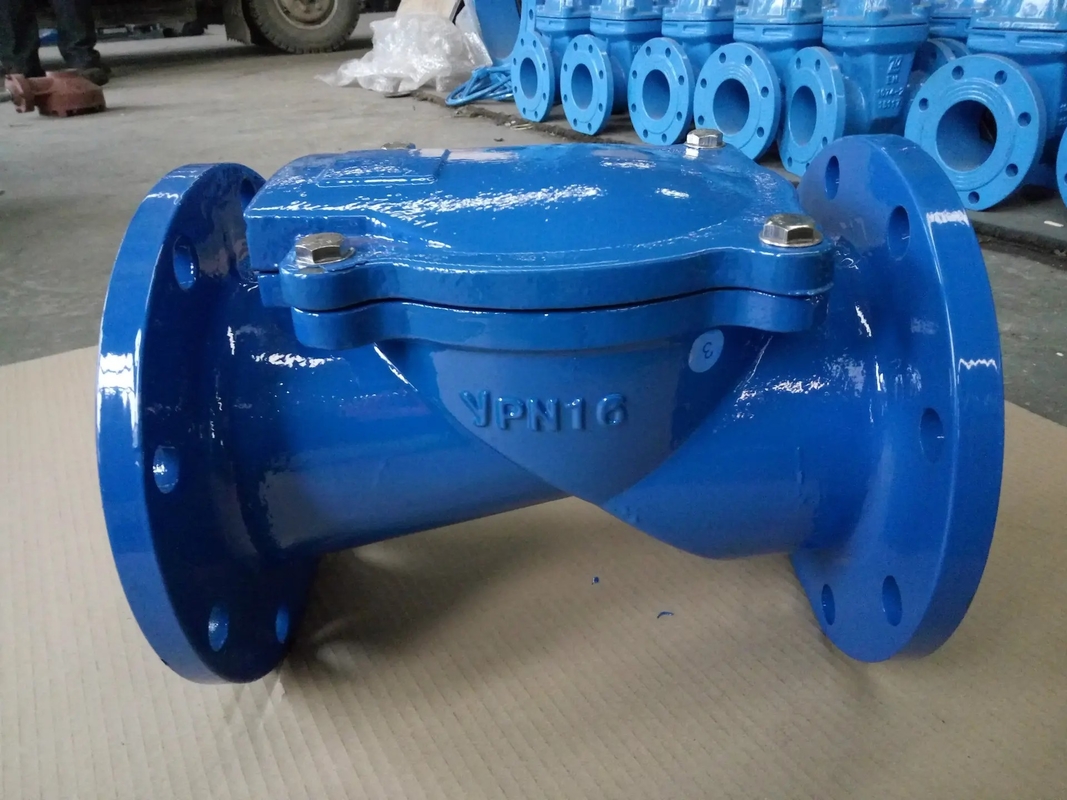

Highlight: | DN600 Rubber Seat Check Valve,GGG50 Rubber Seat Check Valve,German Stand rubber flap check valve |
1. The rubber flap check valve has a small working distance and a short opening and closing streamer.
2. The rubber flap check valve has good sealing performance, small friction between the sealing surfaces and long service life.
3. The rubber flap check valve has a simple structure and is more convenient to build and maintain.
In the long river of opening and closing, the rubber disc check valve is anti-wear due to the fact that the friction between the disc and the sealing surface of the valve body is smaller than that of the gate valve; the opening height seems to be 1/4 of the diameter of the valve seat. The gate valve is much smaller; usually there is only one sealing surface on the valve body and the valve disc, so the construction process is better and maintenance is better; since the packing is a mixture of asbestos and graphite, the temperature resistance level is higher.
Once the disc of the rubber disc check valve is moved away from the closing whistle, there will be no more triggering between its valve seat and the sealing surface of the disc, so that its sealing surface is damaged very little, so its sealing habit is very good. OK, the downside is that particles in the cross-flow media may be trapped between the sealing faces. However, if a valve disc is made of steel balls or porcelain balls, this theme will be solved. Because the valve seat and valve disc of most globe valves are relatively easy to repair or replace, at the same time, when repairing or replacing the sealing prefabricated components, it is not necessary to disassemble the inner and outer valves from the pipeline, which is welded into a ring when the valve and the pipeline are welded. The yard that buckles one ring is very applicable.
Nominal Diameter | DN50--DN600 |
Pressure level | 0.6Mpa-1.6Mpa |
Applicable medium | water, steam, gas, oil, etc. |
Applicable temperature | 0degrees Celsius - 80 degrees Celsius |
Rubber flap check | flange thickness (mm) | flange outer circle (mm) | waterline height (mm) | waterline diameter (mm) | Height (mm) | Length (mm) | Weight (KG) |
DN50 | 12.5 | 155 | 2 | 102 | 161 | 205 | 6.5 |
DN65 | 12 | 180 | 2 | 123 | 178 | 210 | 7.5 |
DN80 | 14 | 195 | 2 | 134 | 195 | 220 | 9 |
DN100 | 14.5 | 215 | 2 | 157 | 215 | 250 | 12 |
DN125 | 20 | 245 | / | / | / | 280 | 15 |
DN150 | 24 | 280 | / | / | 280 | 325 | 22 |
DN200 | 24 | 335 | / | / | 337 | 400 | 35 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
