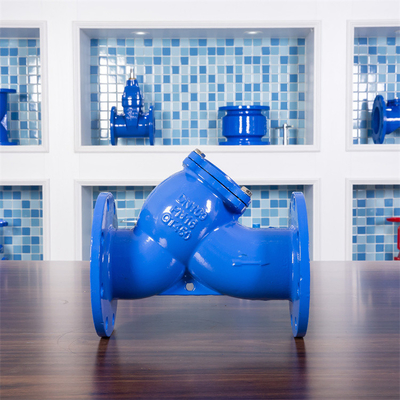

DIN 3202 F1 PN16 Y Type Strainer Valve

DIN 3202 F1 PN16 Y Type Strainer Valve
DIN 3202 F1 PN16 Y Type Strainer Valve DIN 3202 F1 PN16 Y Type Strainer Valve

Large Image :  DIN 3202 F1 PN16 Y Type Strainer Valve

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

DIN 3202 F1 PN16 Y Type Strainer Valve

Description
Type:: Ductile Iron Y Strainer Port Size:: DN100
Material:: Wate,tap Water,oil,food,STEAM Body Material:: Ggg50
Temperature Of Media: Low Temperature, Normal Temperature Pressure:: PN10/16
Highlight:

DIN 3202 F1 Y Type Strainer Valve

,

PN16 Ductile Y Type Strainer Valve

,

DN100 flange end y type strainer

DIN STANDARD DN100 PN10 PN16 Ductile Cast Iron DIN3202 F1 Flanged Y Strainer



product description

The Y-type filter is mainly composed of: main body, filter screen, middle cover, middle plug, and middle fastener. The characteristics of this filter are: rapid flow, so small pressure loss, strong anti-fouling, and convenient slag discharge. Y-type filter is suitable for steam, air, kerosene, water, weak corrosive gas and liquid.



Carefully clean all pipe threaded surfaces before installing the filter, using pipe sealant or Teflon tape (teflon) in moderation. End threads are left untreated to avoid allowing sealant or Teflon tape to enter the piping system. Filters can be installed horizontally or vertically downwards. When installing 1-1/4" (DN32) or larger socket weld filters or all D series filters, it should be noted that the gaskets on these filters are non-metallic and are easily damaged by overheating. Shorten the welding time and cool the filter after welding. If preheating is required before welding or continued heating after welding (D series filter), it is recommended to remove the gasket before heating.



Material :

y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307





y-type filter(reduced diameter) flange thickness flange outer circle structure length waterline height waterline diameter Height screen diameter filter length filter aperture center distance of filter weight length
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630

DIN 3202 F1 PN16 Y Type Strainer Valve 0DIN 3202 F1 PN16 Y Type Strainer Valve 1DIN 3202 F1 PN16 Y Type Strainer Valve 2

DIN 3202 F1 PN16 Y Type Strainer Valve 3DIN 3202 F1 PN16 Y Type Strainer Valve 4



company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

DIN 3202 F1 PN16 Y Type Strainer Valve 5

DIN 3202 F1 PN16 Y Type Strainer Valve 6

DIN 3202 F1 PN16 Y Type Strainer Valve 7





DIN 3202 F1 PN16 Y Type Strainer Valve 8



DIN 3202 F1 PN16 Y Type Strainer Valve 9





























































































































































































































































































































Q1. Can I have a sample order for valve? A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. Do you have any MOQ limit for valve order? A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive? A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5: Are you products standard? A: Our model is standard, if you have specific demand, pls tell us.
Q6: Do you have interest to do our own design items? A: Absolutely! We have big interest.
