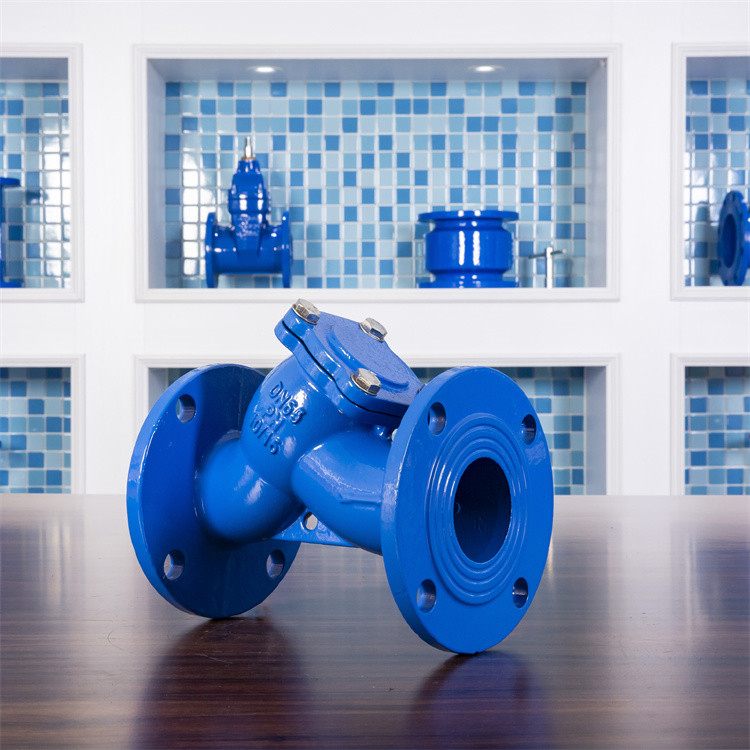

Sewage Treatment Ductile Iron Y Strainer

Sewage Treatment Ductile Iron Y Strainer
Sewage Treatment Ductile Iron Y Strainer

Large Image :  Sewage Treatment Ductile Iron Y Strainer

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Sewage Treatment Ductile Iron Y Strainer

Description
Type:: Ductile Iron Y Strainer Port Size:: DN50-DN600
Material:: Ductile Iron (Ggg50) Media:: Water ,sewage,oil,drinking Water
Flange Connection:: EN1092-2 PN10/16, ANSI B16.5 SIZE: DN50~DN600( 2′′ ~ 24′′)
Color: Random
Highlight:

Sewage Treatment Ductile Iron Y Strainer

,

Flang End Ductile Iron Y Strainer

,

GGG50 QT450 strainer y type flanged

Sewage Treatment Ductile Iron Flang End Y-Type Strainer Pn10 Dn80



product description

How does Y-Strainer work?

In the Y-type strainer, the filtration leg is attached to the main pipeline at an angle, the shape of which is like ‘Y’ and called Y Strainer. A Y-type strainer is typically used in high-pressure pipelines, steam, liquid, or gas, but it can be used in vacuum or suction conditions.

Y-type strainers have a lower dirt holding capacity owing to the need for more frequent cleaning. This is usually not an issue with steam systems, except where high levels of rust are present, or shortly after commissioning where large quantities of debris can be added.

In applications where large quantities of debris are present, the blow valve will normally be installed into the strainer cap, which allows the strainer to use the steam pressure to be cleaned and without shutting down the process.



One end is precipitation waste, impurities, usually it is installed at the inlet end of the pressure reducing valve, pressure relief valve, water level valve or other equipment, its function is the impurities in the water, to protect the normal operation of the valve and equipment, filter The water to be treated by the device enters the body from the water inlet, and the impurities in the water are deposited on the stainless steel filter screen, resulting in a pressure difference.



y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307







y-type filter(reduced diameter) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter weight lenght
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630



Sewage Treatment Ductile Iron Y Strainer 0Sewage Treatment Ductile Iron Y Strainer 1Sewage Treatment Ductile Iron Y Strainer 2

Sewage Treatment Ductile Iron Y Strainer 3Sewage Treatment Ductile Iron Y Strainer 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

Sewage Treatment Ductile Iron Y Strainer 5

Sewage Treatment Ductile Iron Y Strainer 6

Sewage Treatment Ductile Iron Y Strainer 7





Sewage Treatment Ductile Iron Y Strainer 8



Sewage Treatment Ductile Iron Y Strainer 9





























































































































































































































































































































Q: Are you a manufacturer or trading company?

A: We are a valve manufacturer and factory, and not a trading company.

Q: Do you have an agent or representative abroad?

A: We don't have an agent abroad,

please contact us to purchase valves from Fengbao Valve Co., Ltd directly.

Q: What's your product range?

A: We can produce a Gate valve, Check valve, Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity, generally 30-40 days.

 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
