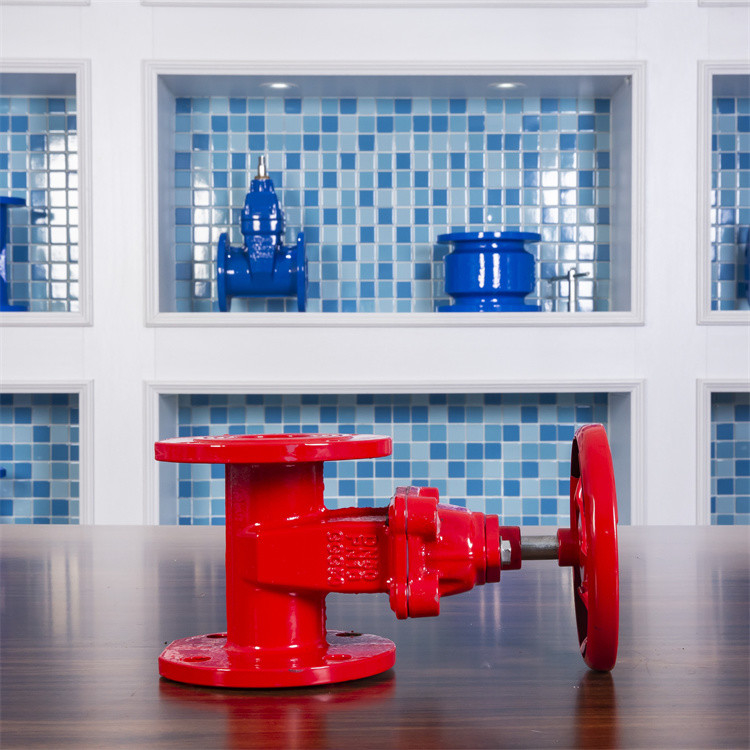

GGG50 PN10 Ductile Iron Gate Valve

GGG50 PN10 Ductile Iron Gate Valve
GGG50 PN10 Ductile Iron Gate Valve

Large Image :  GGG50 PN10 Ductile Iron Gate Valve

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50-DN600
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

GGG50 PN10 Ductile Iron Gate Valve

Description
Type:: Elastic Gate Valve Pressure:: PN16/PN10
Temperature:: -20 ~180℃ Connection:: Flange Ends
Media: Water,oil,gas,Water/gas/oil/sewage Model: DN50-DN300
Material: Ductile Iron Material Model: QT450/QT400/GGG50/GGG40
Highlight:

50mm Ductile Iron Gate Valve

,

PN10 Ductile Iron Gate Valve

,

GGG50 Elastic gate valve threaded type



Low temperature -25°C high temperature 180°C ductile iron elastic seat gate valve PN16/PN10 GGG50 can be customized DN50-DN300



product description





flat seat
Traditional gate valves often deposit in the groove at the bottom of the valve due to foreign objects such as stones, wood blocks, cement, paper scraps, sundries, etc. after the pipe is washed with water. It is easy to cause the phenomenon of water leakage that cannot be closed tightly. The bottom of the soft-sealed gate valve adopts the same flat bottom design as the water pipe, which is not easy to cause debris to accumulate, so that the fluid is unobstructed.
·Overall lagging
The valve plate is made of high-quality rubber as a whole, and the domestic first-class rubber vulcanization technology enables the vulcanized valve plate to ensure accurate geometric dimensions, and the rubber and the ductile iron gate are firmly connected, not easy to fall off and have good elastic memory.
·preservative
The valve body is painted with powder epoxy resin, which can prevent corrosion and rust of the valve body, and can be used in sewage system.
·Not easy to break
In the past, traditional cast iron gate valves were often broken due to foreign objects hitting, colliding or overlapping. Since this valve uses ductile iron, this situation can be greatly reduced.
·Three "O" ring seals
Because the valve stem adopts the sealing design of three "0" ring seals, it can reduce the frictional resistance when switching, greatly reduce the phenomenon of water leakage, and can replace the sealing ring without water construction.
· Helps to drink
Since the inside of the valve body is coated with non-toxic epoxy resin, the inner and outer surfaces of the gate are completely covered with rubber so that no rust water or corrosion occurs, and it can be used for drinking.
·Precision casting valve body
The valve body is made of precision casting, and the precise geometric dimensions make it possible to ensure the tightness of the valve without any finishing inside the valve body.
·Light weight
This valve is made of spheroidal graphite casting, and its weight is about 20%-30% lighter than that of traditional gate valves. Easy installation and maintenance.
