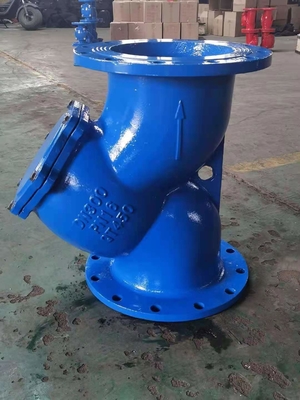

PN10 PN16 Industrial Cast Iron Water Meter Y Type Filter Y Strainer

product description

Y-type filter (water filter) belongs to the series of pipeline coarse filter, and can also be used to filter large particles of gas or other medium. etc.), the instrument can work and operate normally, to stabilize the process and ensure the role of safe production. The Y-type filter (water filter) produced by the company can be customized according to the specific requirements of customers (special pressure, special diameter). The Y-type filter (water filter) has the advantages of simple production, convenient installation and cleaning, and large dirt holding capacity.

The filter is an indispensable device on the conveying medium pipeline. The filter consists of a cylinder body, a stainless steel filter screen, a sewage part, a transmission device and an electrical control part. After the water to be treated passes through the filter cartridge of the filter screen, its impurities are blocked. When cleaning is required, just take out the detachable filter cartridge and reload it after treatment.

Material :

Y Strainer Ductile Iron Body PN16 Material List:

1. Body/Bonnet: Ductile Iron ASTM A536 60-40-18/ DIN1693 GGG40

2. Screen: Stainless Steel SS304

3. Gasket: Graphite/EPDM

4. Bolt: ASTM A193-B7/B8

5. Blowoff Plug: Ductile Iron/Carbon Steel/Stainless Steel





y-type filter(reduced diameter)	flange thickness	flange outer circle	structure length	waterline height	waterline diameter	Height	screen diameter	filter length	filter aperture	center distance of filter	weight	length
DN50	12.5	156	201	2	102	185	48	85	2	4	4.5	205
DN65	12	175	217	2	123	210	60	95	2	4	6.5	220
DN80	14	190	247	2	134	242	68	116	2	4	8	250
DN100	14.5	209	293.5	2	157	265	82	137	2	4	10.5	298
DN125	20	240									14	315
DN150	24	280	335				113	165	2	5	19	350
DN200	24	335	405								34	410
DN250	24	405	460								58	525
DN300	24	460	520								80	605
DN350	25	520	580								98	627
DN400	27	580									126	630





company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!



































































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
