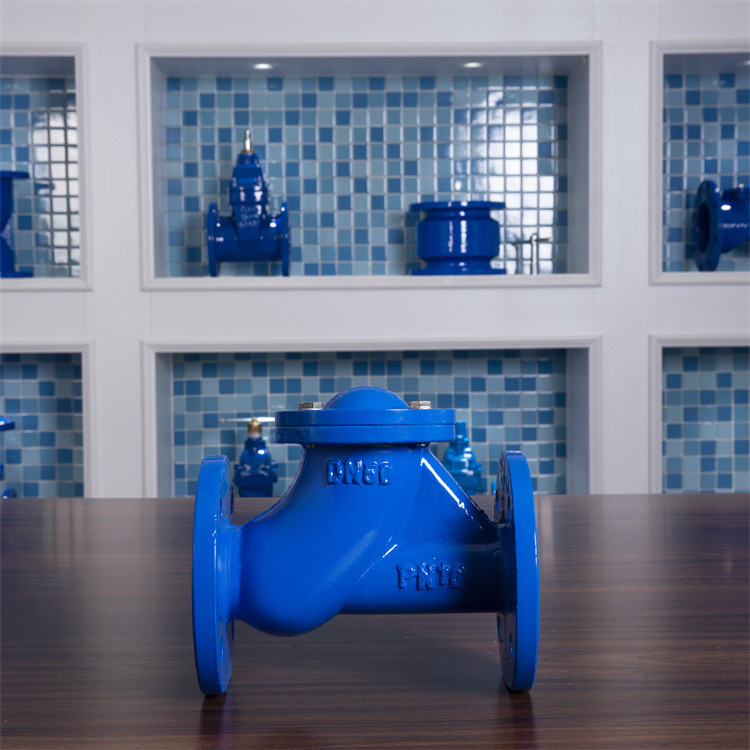

DIN3202 F6 Non Return Valve Rubber Flap

DIN3202 F6 Non Return Valve Rubber Flap
DIN3202 F6 Non Return Valve Rubber Flap

Large Image :  DIN3202 F6 Non Return Valve Rubber Flap

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: Ball Check Valve
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

DIN3202 F6 Non Return Valve Rubber Flap

Description
Type: Flange Ball Check Valve Port Size: DN50-DN500, DN25 DN32 DN40 DN50 DN65 DN80
Material: Casting Iron Pressure: Medium Pressure
Application: Water Treatment Connection: EN1092-2 Flange
Structure: Flanged Ball Check Valve Working Pressure: PN10/PN16
Highlight:

DIN3202 non return valve rubber flap

,

F6 non return valve rubber flap

,

DN25 swing type non return valve

DIN3202 F6 Cast Iron Non-Return Ball Check Valve

product description

Ball check valve is a check valve with multi-ball, multi-channel, multi-cone inverted fluid structure, mainly composed of front and rear valve bodies, rubber balls, cone bodies, etc.

Ball check valve uses bowl classified covered by rubber as valve disc. With the help of medium, the valve disc can roll up-down or right-left to close or open valve. It can avoid water hammer and has good sealing. The valve body adopts the whole water channel, having large flow and low fluid resistance. Head loss is less than swing valve by 50%.


Ball check valve can be installed vertically or horizontally. It can be used in pipe lines for cold water or hot water. It is quite suitable for diving drainage pump. Applicable temperature is 0~80℃.

Technical Parameter:
Model No.Nominal Pressure(MPa)Test Pressure PS(MPa)Working Temperature(℃ )
ShellSeal
HQ41X-10/161.01.51.1≤80
1.62.41.76



Components:

ComponentsMaterials
Body, bonnetDuctile iron, cast steel
Ball rack, baffle plateDuctile iron, cast steel
BallCarbon steel(covered by rubber)



Dimensions:

Nominal Diameter(DN)506580100125150200250300350
L(mm)216241293305381403495622698787
H(mm)185210245280335400495600715800
Connecting DimensionsPN1.0MPa: GB4216.4-84; PN1.6: GB4216.5-84




DIN3202 F6 Non Return Valve Rubber Flap 0DIN3202 F6 Non Return Valve Rubber Flap 1DIN3202 F6 Non Return Valve Rubber Flap 2



DIN3202 F6 Non Return Valve Rubber Flap 3DIN3202 F6 Non Return Valve Rubber Flap 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.

The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.

The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

DIN3202 F6 Non Return Valve Rubber Flap 5

DIN3202 F6 Non Return Valve Rubber Flap 6

DIN3202 F6 Non Return Valve Rubber Flap 7





DIN3202 F6 Non Return Valve Rubber Flap 8



DIN3202 F6 Non Return Valve Rubber Flap 9
































































































































































Q: Are you a manufacturer or trading company?
A: We are a valve manufacturer and factory, and not a trading company.
Q: Do you have an agent or representative abroad?
A: We don't have an agent abroad,
please contact us to purchase valves from Fengbao Valve Co., Ltd directly.
Q: What's your product range?
A: We can produce a Gate valve, Check valve, Y strainer,
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes.
The lead time depends on your quantity, generally 30-40 days.
 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
